Overview
This Wi-Fi antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical Wi-Fi transceiver applications.
Read More
Images
Detailed Description

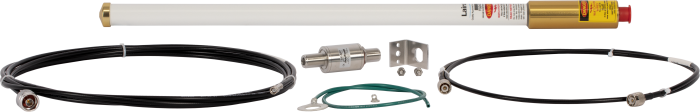

This omnidirectional Wi-FI antenna kit is designed for use with stations where an external Wi-Fi antenna or surge suppression is required. The kit includes a robust Wi-Fi antenna with mounting hardware to attach the antenna to a mast. Coaxial cables are included to connect the Wi-Fi radio to the surge suppressor, and the surge suppressor to the antenna.
Specifications
| Weight | 1.11 kg (2.45 lb) |
Antenna |
|
| Model | FG24008 |
| Frequency Range | 2.4 to 2.5 GHz |
| Gain | 5.8 dBd |
| Impedance | 50 ohm |
| Termination | N female |
| Length | 62.2 cm (24.5 in.) |
Antenna Cable |
|
| Type | LMR-195 |
| Termination 1 | N male |
| Termination 2 | N male |
| Length | 1.52 m (5 ft) |
Surge Suppressor |
|
| Model | TSX-NFF |
| Frequency Range | 698 MHz to 2.7 GHz |
| Maximum Power | 500 W |
| Impedance | 50 ohm |
| Termination | N female |
Wi-Fi Cable |
|
| Type | LMR-195 |
| Termination 1 | N male |
| Termination 2 | RPSMA male |
| Length | 4.75 m (15 ft) |
