A simple, quick monitoring and reporting solution that can be used in extreme environments to alert and notify of changing weather conditions.

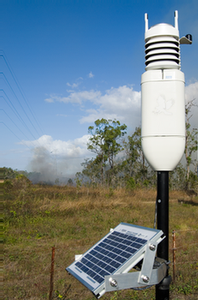

The FWS100 incorporates a WeatherHawk 520 weather station with a RF411 radio kit, SP2 solar panel mounted on a rapid deployment tripod. The sensors of the WeatherHawk 520  measure wind speed & direction, barometric pressure, solar radiation, rainfall, air temperature & relative humidity.

This rugged sensor system has no moving parts and includes an integral data logger, 3AHr battery pack & wireless 916 MHz spread spectrum radio. Accessories include a mast adapter for masts from 1.75-2.0 “ ID, a wireless base station w/power supply & antenna.

The Weatherhawk 520 are wireless to a host device (PC or server) using fully integrated industrial grade 916 MHz spread spectrum RF communications technology. They also have an RS232 serial data I/O located on the bottom of the weather station, which can be used as a second serial communications port, or for programming and testing the system, or for direct data downloads using a PC or PDA.

Components

•  Rapid deployment tripod
•  Weatherhawk 520
•  Radio kit RF411 922 MHz
•  SP2 solar panel kit

Features

•  A portable weather station in around 5 minutes.
•  Perfect for fire professionals, prescribed burning and rapid response.
•  No extra equipment required
•  No specialist training required
•  Wireless connectivity
•  Built for extreme conditions
•  Fully customisable
•  Smart power management
•  Cost Effective

Specifications

WeatherHawk 520

Weather Station


Temperature Range: -40 to +122F (-40 to +50C)
Data Storage: 60 days of hourly data
I/O: Direct connection RS232
Optional Wireless RF
I/O Data Rate: 9600 baud
Wireless Frequency: Spread Spectrum 916 MHz
Battery: Integrated 2.9 AHr Lead-Acid GelCel
Charging Voltage: 16 t0 22 VDC
Current Drain: 10 mA w/o heater
1.1 A with heater

Sensors

Air Temperature: Capacitive ceramic
Range -60 to +140F (-52 to +60 C)
Accuracy: +/-0.9 F @ -40 to 125 F (+-0.5 C @-40 to 52 C)
Resolution: 0.1 F (0.1 C)

Relative Humidity: Capacitive thin-film polymer
Range 0-100%
Accuracy: +/- 3% @ 0-90%RH; +/- 5% @ 90-100%RH
Resolution: 0.1%

Barometric Pressure: Capacitive Silicon
Range: 17.72-32.48 inHg (60-110 kPa)
Accuracy: .015 inHg @+32 to +86 F (+-.05 kPa @0-32 C)
Resolution: .03 inHg @-60 to +140 F (+-.1 kPa @-52 to +60 C)

Solar Radiation: Silicon pyranometer
Spectral Range 300 to 1100 nm
Reproducibility +/-2%
Output .2 mV per W/m^2
Range 0 to 1000 W/m^2
Temp. Range -40 to 130 F (-40 to +55 C)

Rain: Piezoelectric
Collecting Area 9.3 in^2 (60 cm^2)
Range 0 to 7.87 in/hr (0 to 200 mm/hr)
Accuracy: <5% (weather dependant)
Resolution .001 in (.01 mm)

Wind Direction: Ultrasonic
Azimuth: 0-360 deg
Response Time: 250 ms
Accuracy: +- 2 deg
Resolution: 1 deg

Wind Speed: Ultrasonic
Range: 0-134 mph (0-60 m/s)
Response Time: .25 s
Accuracy: +-.67 mph (+- 0.3m/s) or +-2% which ever is greater
Resolution: .22 mph (0.1 m/s)


RF411

Operating Protocols: Transparent, PB Aware, PB Node
Weight: 227g (8 oz)
Dimensions: 11.4 x 7.0 x 2.9 cm (4.9” x 2.8” x 1.2”)

Operating Temperature Range: -25° to +50°C

SP2 - 5 Watt Solar Panels
